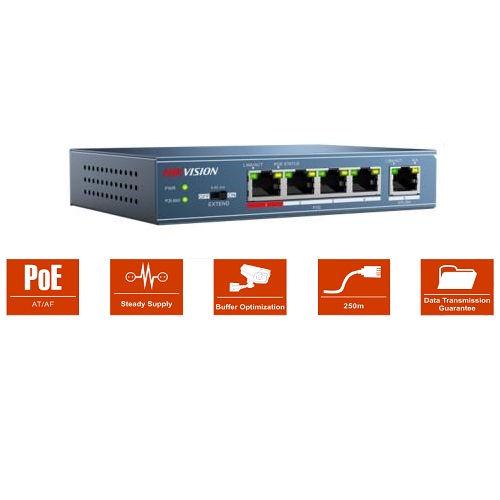

Hikvision POE switch DS-3E0105P-E


2 varastossa

Tuotetunnus (SKU): DS-3E0105P-E Osastot: , ,


DS-3E0105P-E4-ports 100Mbps Unmanaged PoE Switch


IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

4 x 10/100Mbps Auto-MDIX PoEports

Provides up to 30 watts per PoE port

PoEpower budget 58W

4 kV surge protection for PoE ports

IEEE 802.3x flow control support

Plug-and-play installation

1 Gbps switching fabric

448 Kbits RAM Data Buffer

1K MAC address entries

Sturdy metal enclosure

Lataa tiedot DS-3E0105P-E Spec

Network Ports: 5
PoE Port: 4, 10/100Mbps RJ45 ports
Uplink Port: 1, 100M Ethernet Port
Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Switching Capacity: 1Gbps
Max. Forwarding Rate: 0.74Mpps
High Priority Ports: Port 1
Forwarding Mode: Store-and-forward
MAC Address Table: 1k
Flow Control: IEEE802.3x full duplex
Power Over Ethernet
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 58W
Working Mode: Extend On:250m,10M,CAT 5e
Extend Off:100m
Power Supply: 51V DC, 1.25A
Power Consumption: ≤63W
Surge Protection: 4KV
Working Temperature: Temperature: 0℃-40℃
Working Humidity: Humidity: 10%-90% , non-condensing
Storage Temperature: Temperature: -40℃-70℃
Storage Humidity: Humidity: 5%-90% , non-condensing
Weight: 0.299kg
Dimension: 132 mm* 93.3mm * 27.6mm
